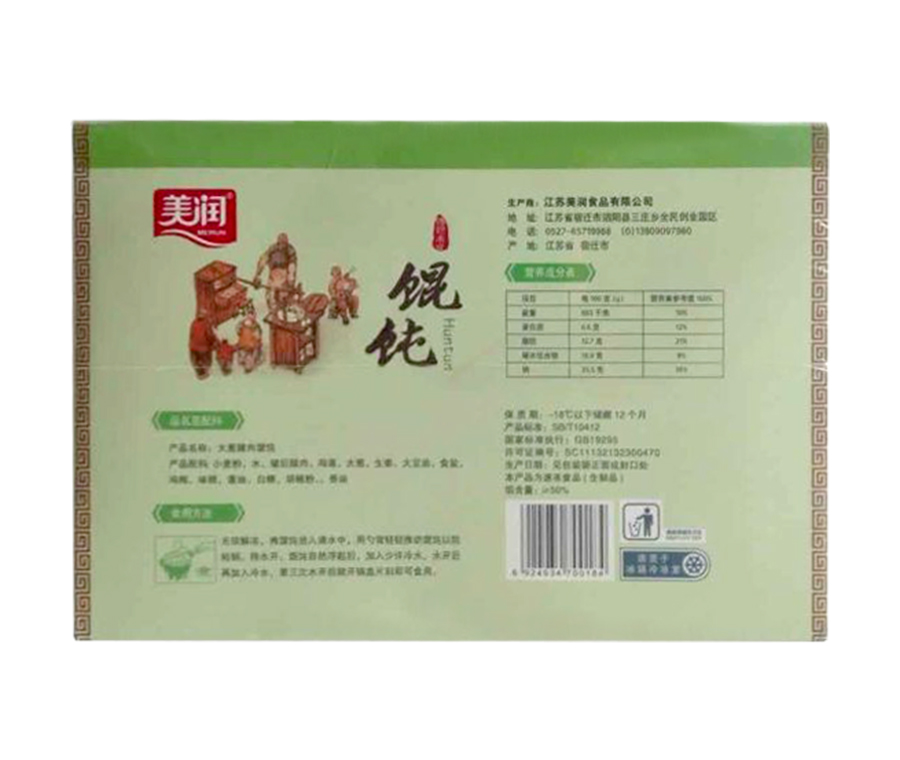

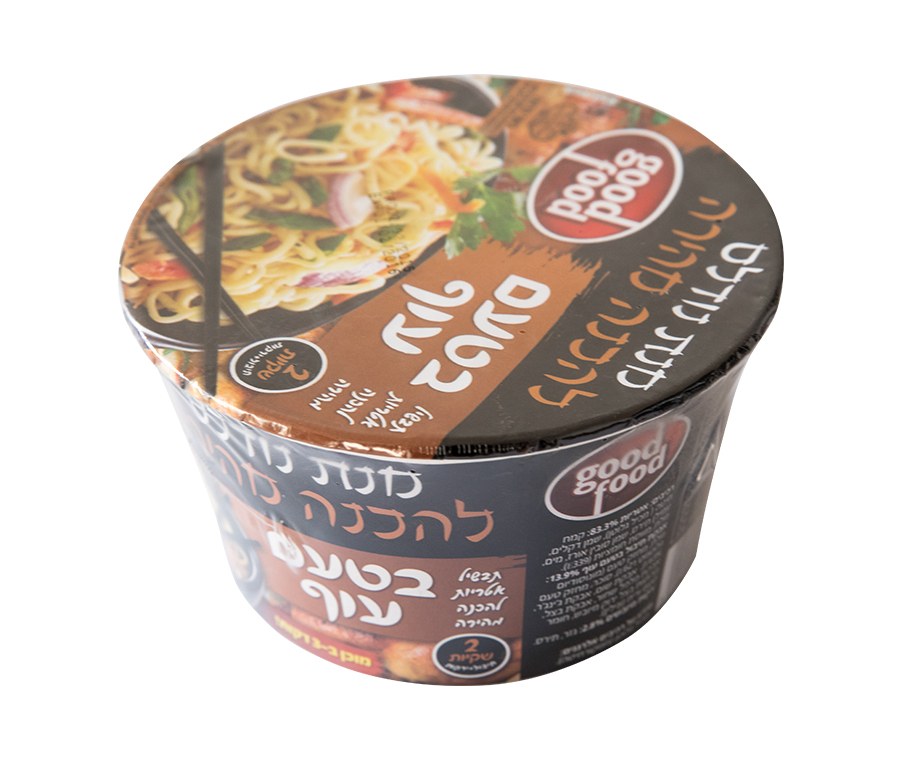

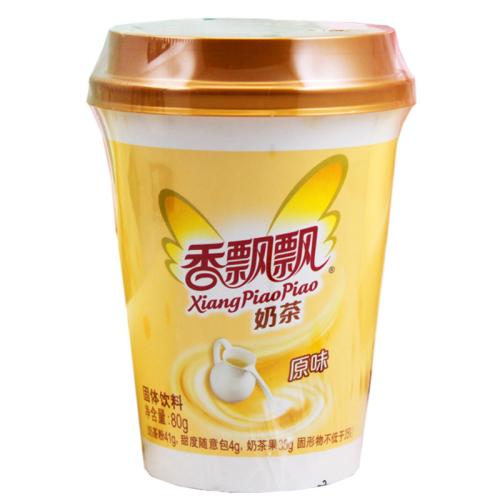

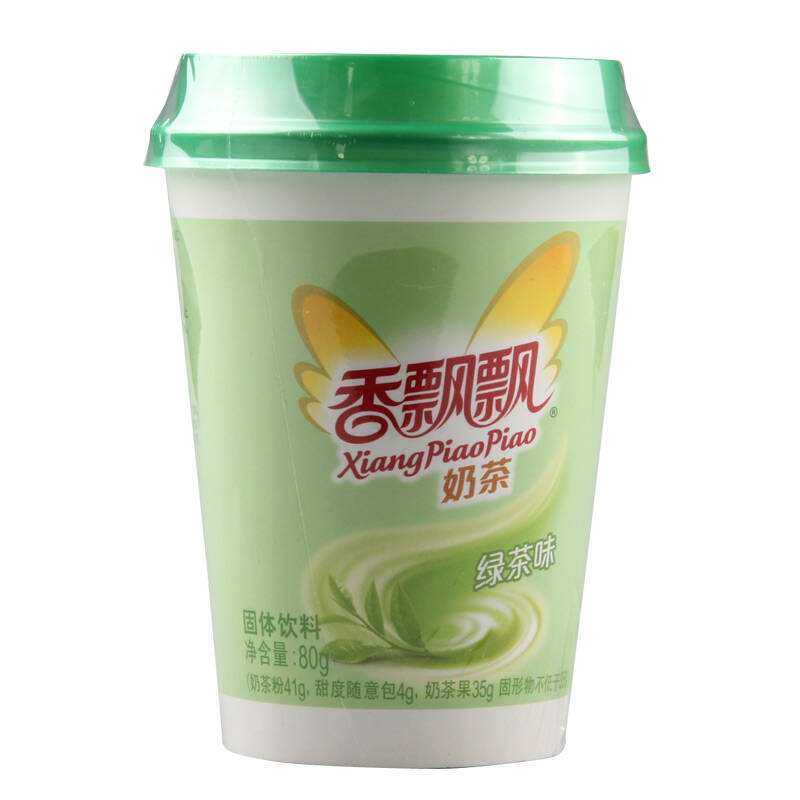

It is suitable for single shrink packaging cup-shaped and box-shaped products like cup noodle,
and for group shrink packaging beverage bottles, books, batteries, soaps,
daily necessities, machine parts, etc.

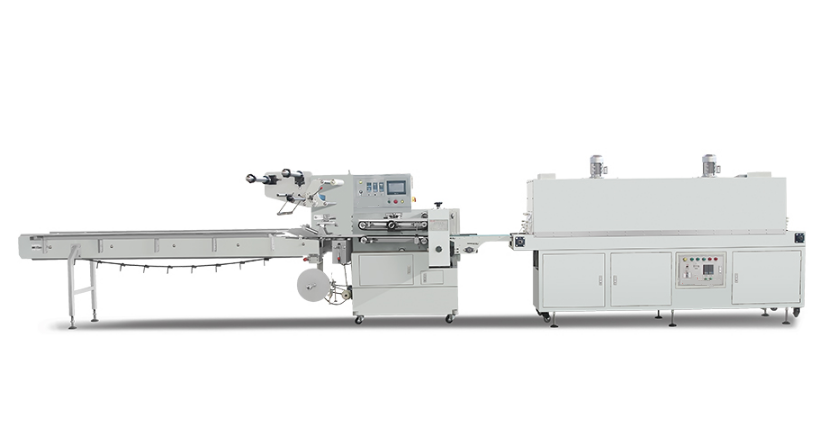

Technical data
Capacity: 50 to 200 packs/minute (subject to the material and thickness of
film as well as product size)
Product size limits:
Length: 70 to 400mm, Width: 32 to 200mm, Height: 5 to 105mm
Floor space (L x W): packaging machine 4400 x 1085mm
Shrink tunnel: 2400mm x 540mm
Power consumption: packaging machine 2.8kw, single phase 220V, 50Hz
Shrink tunnel 16kw, three phase 380V, 50Hz
Total weight: Packaging machine 1200kg
Shrink tunnel 600kg
Packing material: all kinds of heat-shrink film such as PVC, OPP and POF.
Features:
1. Adopting non-heating center seal technology, replace heating device,
the power consumption can be reduced by 1000W.
2. Save packaging film, reduce the film width by 20-30mm, the film cost
can be reduced by 5-6%
3. No center seal mark makes the package more beautiful
4. Non-heating center seal technology reduces poor center sealing rate and
reject rate.
5. No need to use center seal triming edge recovering device, reduce
possibility of trouble
6. Electrostatic adherence technology is safe and reliable, eliminating the
possibility of worker being burnt by center sealer.
