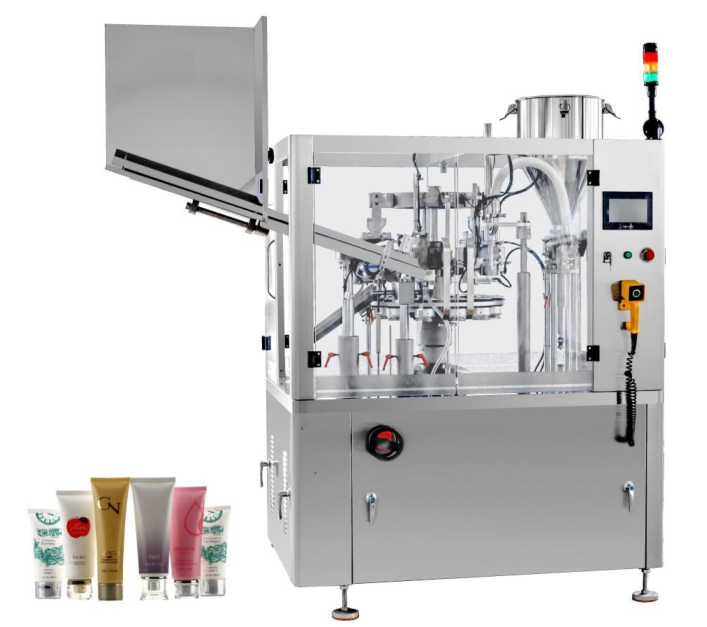

YL-100C Tube Filling and Sealing Machine

YL-100C Plastic Tube Filling and Sealing Machine

Multi-color filling
Special tube filling
Special-shaped sealing
Compact design and auto tube feed. Driving part fully-closed.
Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
Tube washing and feeding conducted pneumatically, accurate and reliable.

Features
Compact Design
Driving Parts Fully-closed
Pneumatic Tube Washing & Feeding
Intelligent Temperature Control and Cooling System
Easy to Operate and Adjust
316L Stainless Steel Contact Parts to meet GMP Standard
Safety Interlock Shutdown when Door is Open
Overload Protection Provided
Automated Working process from Tube Loading to Finished Products Output
Automatic Orientation Effected by Photoelectric Induction

Optional Devices
Chiller
Date Coding Embossing
Automatic Tube Feeding Magazine
Change Parts

Technical Parameters
Filling volume: 1-400ml/unit (Adjustable)
Filling accuracy: ≦±0.5﹪
Capacity: 4000-4800unit/hour, Adjustable
Tube diameter: Φ10-60 mm
Tube length: 50-240mm
Hopper volume: 40L
Power: 380V/220V (Optional)
Air pressure: 0.4-0.6 MPa
Machine power: 9kw
