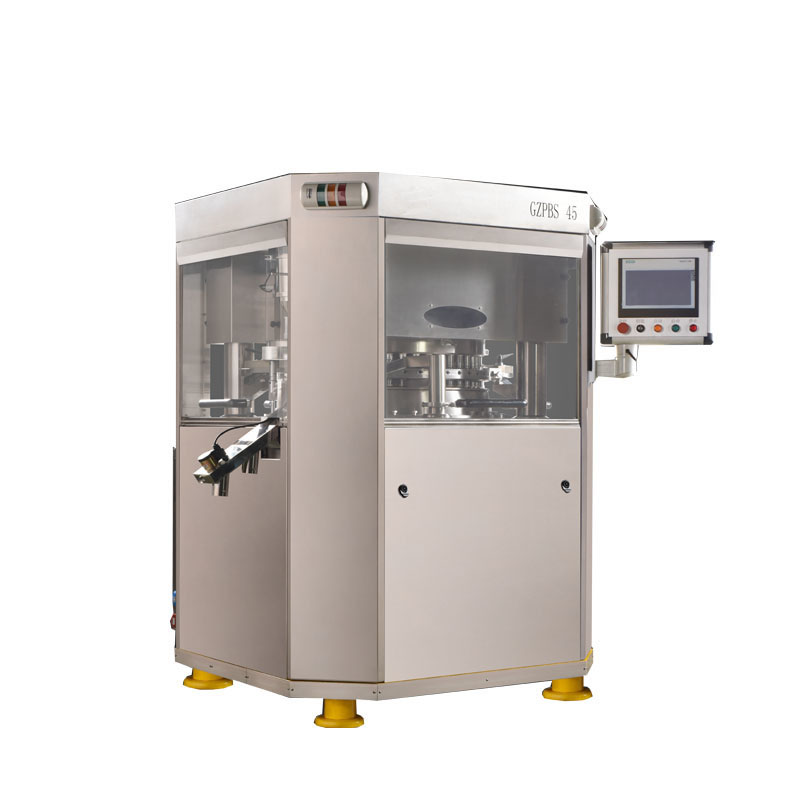

GZPB series automatic high-speed rotary tablet press is the second generation of the company's latest product. It concentrates on the technical features of the domestic automatic high-speed tablet press and has made significant improvements in machine structure and operation control. The machine structure adopts a universal seat, a universal shape, and can replace the punching disc body, thereby realizing the interchange of one machine and multiple types. Industrial PLC automatic control is adopted in operation control, leaving a large development space.
Usage:
This machine is a fully automatic rotary tablet press machine. It is a device for making various granular raw materials into tablets in the pharmaceutical, chemical, food, electronics and other industries.
1.2 This machine is suitable for the production of various round, shaped tablets, sugar tablets, calcium tablets, etc.; but not for semi-solid, moist powder and powder compaction (≥100 mesh).
This series is a double-release, high-pressure high-speed tablet press. It adopts the latest foreign structural design and adopts the advanced hand-free wheel servo control mode, which is simple and fast, and realizes product standardization, modularization and serialization.GZPB series products have the advantages of high precision, high speed, high automation program, etc., and are ideal equipment for mass production.
Fully compliant with GMP requirements, it can suppress double-layer color film, ring piece, round piece, engraving piece and shaped piece, suitable for high efficiency and precision pressing in pharmaceutical, food, chemical and other industries.
Technical Parameter:
| Mold |
GZPB-45 |
| Dies |
45 |
| Punch type | D(EU Standard) |
| Production capacity(p/h) | 405000 |
| Max.main pressure(kn) | 100 |
| Max.pre-pressure(kn) | 20 |
| Max. tablet diameter(mm) | 25 |
| Max. irregular long axis size(mm) | 25 |
| Max.filling depth(mm) | 20 |
| Max.tablet thickness(mm) | 0.5-8 |
| Main motor power | 11Kw,3P,380V,50Hz |
| Overall dimension(mm) | Main machine:1704*1380*1926 |
| Weight(kg) | Main machine:3980kg |
