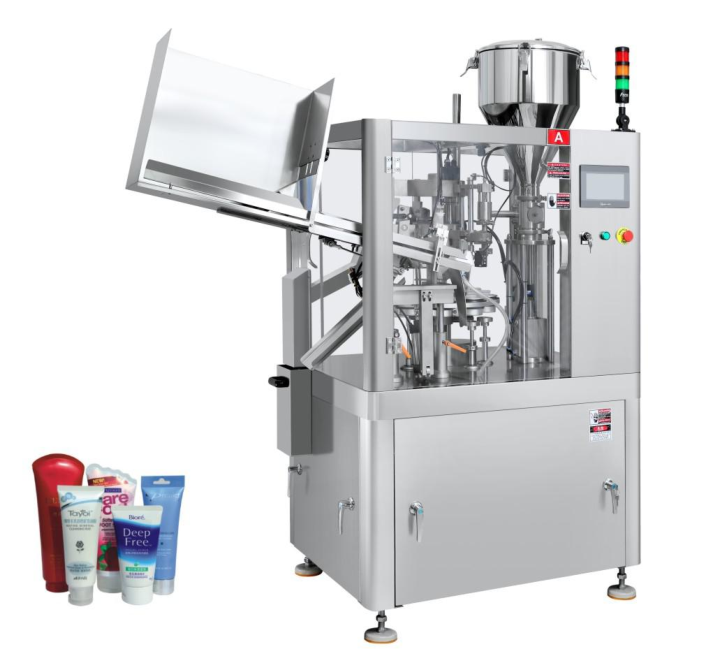

YL-60 Plastic Tube Filling and Sealing Machine
Compact design and auto tube feed. Driving part fully-closed.
Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
Tube washing and feeding conducted pneumatically, accurate and reliable.
Features
◆Compact Design
◆Driving Parts Fully-closed
◆Pneumatic Tube Washing & Feeding
◆Intelligent Temperature Control and Cooling System
◆Easy to Operate and Adjust
◆316L Stainless Steel Contact Parts to meet GMP Standard
◆Safety Interlock Shutdown when Door is Open
◆Overload Protection Provided
◆Automated Working process from Tube Loading to Finished Products Output
◆Automatic Orientation Effected by Photoelectric Induction
Optional Devices
◆Chiller
◆Date Coding Embossing
◆Automatic Tube Feeding Magazine
◆Change Parts
Technical Parameters
Filling volume: 1-250ml/unit (Adjustable)
Filling accuracy: ≦±1﹪
Capacity: 2400-3000unit/hour, Adjustable
Tube diameter: Φ10-50 mm
Tube length: 50-200mm
Hopper volume: 40L
Power: 380V/220V (Optional)
Air pressure: 0.4-0.6 MPa
Equipped motor: 1.1KW
Machine power: 5kw
Inner wind motor: 0.37kw
Convulsions motor: 0.37kw
Dimension: 1950×760×1850（mm）
Weight: About 950 Kg
