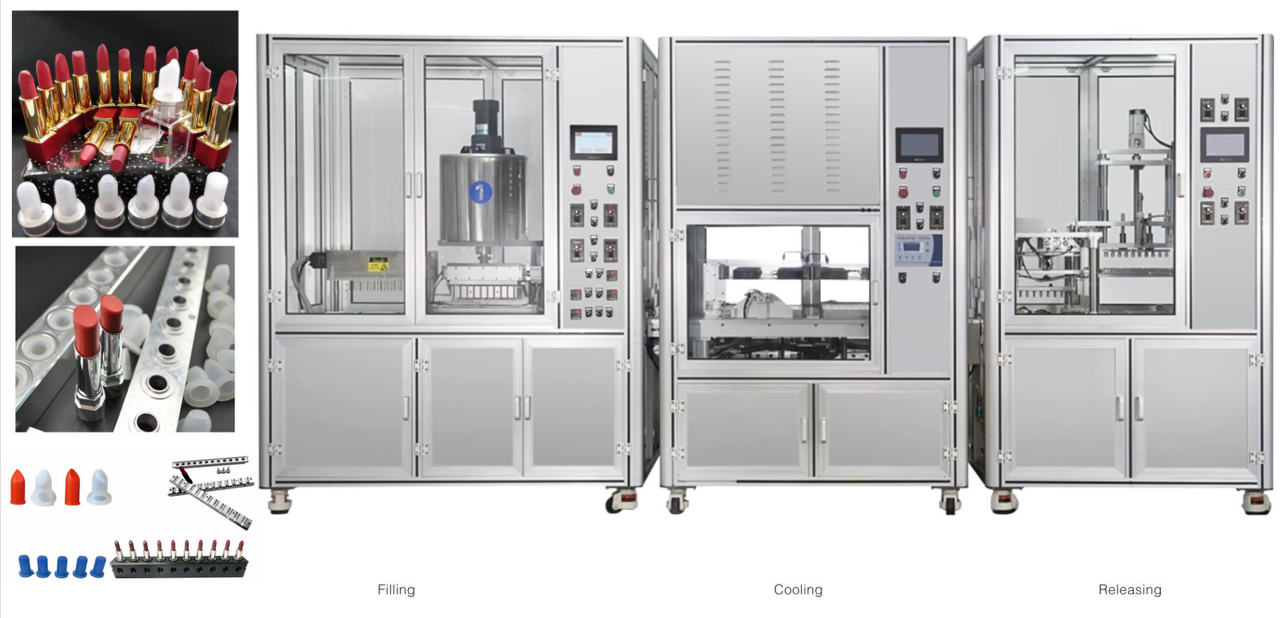

Model YLJH-10A is an automatic designed for the production of hot filling mould products such as high quality lipstick, lip balm, cosmetic pencil etc..
For filling, have 3 mainly part:
1st: pre-heating for the aluminum mould or silicone or silicone mould.( avoid the hole on the lipstick, material can fluid to filling)
2nd:filling device( from down to up filling, can avoid air bubble.)
3rd after heating function, this is deal with the hole of the lipstick after filling, thus can added the lipstick drawing force.
Target products
•Soft rubber moulding lipstick(silicone mould lipstick )
•Engraved lipstick(embossing/debssing designed lipstick)
•Aluminum mould lipstick
•Conventional lipstick
Mould (options)
•Aluminum mould
•Lipstick metal holder& soft rubber mould (silicone mould)
Capacity
•45-60 lipsticks/min (10 nozzle filling heads)
Features
•2 sets of 3 layers of jacketed vessels 25L capacity with stirrer (vessels also can choose 30l-100L)
When one is working, another one is heating, no effect the capacity.
•Servo motor controlled dosing pump
•Dosing volume and pump speed controlled by digital input , Accuracy +/-0.5%
•Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
•Mould raise/lower system for bottom-up filling
•Servo controlled mould raise /lower system
•Mould pre and post heating(before and after filling)
•20-30 moulds/cycle time
Parameters:
Voltage AC220V/50Hz
Operator 1 person
Weight 600kg(old)
Body material T651+SUS304
Capacity 45-60pcs/min(10 Nozzle)
Vessel volume 25L/set*2-option(30l-100L)
Display PLC-Mitsubishi
No. Of nozzle 10holders
Power consumption 7-11.5kw（max heating）
Production line Linear
Air input 6-8kg/cm2
Dimensions 1600*1300*1953（mm）
