Characters

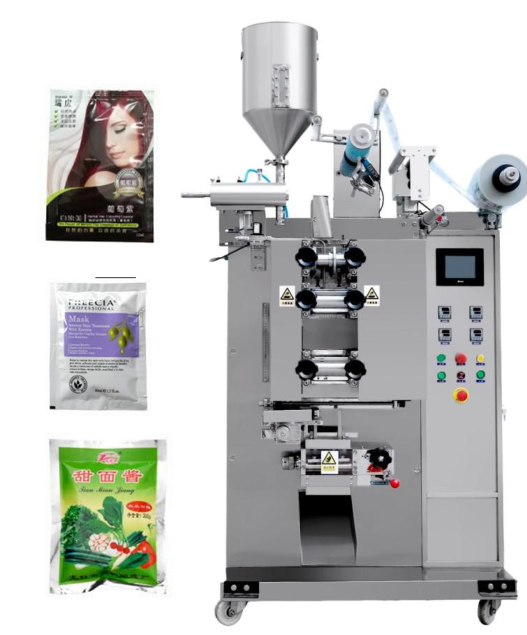

The machine is equipped with one set vertical hot rolling device, one set horizontal hot rolling device and one set horizontal cold rolling device.
Adopted the continuous rollers to seal the sachet. Adopted complete, continuous sealing pattern(chessboard pattern)
Using the latest Hibar pump piston pump or Hibar pump（optional）to fill with high filling accuracy.
Machine offered three types cutting knives(flat knife, serrated(zigzag) knife, dotted line knife) for customer selection. And also equipped with the punching easy tearing mouth device)
Machine adopted PLC control and touch screen indicating working status
Servo vertical hot sealing device ensure stepless controlled host machine speed adjustment
Servo horizontal hot sealing device achieve sachet length stepless adjustment
Servo horizontal cold sealing device ensure nice sealing appearance and coding effect.
Intelligent photoelectric eye marking system with the function of automatic orientation function, it can automatically eliminate the influence due to the defective printing of the eye mark or other factors.
Machine with the film tension revise function which can eliminate the influence from the packing material tension changing during production
Temperature intelligent control by the thermometer mode, more reliable and stable.
Blades error recovery device can achieve adjusting the blades angle online.
Optional Function
Coding device
Material charging machine
Product Discharging Conveyor
Additional sachet forming device
Material level control system
Hopper mixing device
Hopper heating and warm keeping device.
Specification
Item Detail Remark
Sachet Length 70～140mm or100-170mm
Sachet width 30-120mm Changing width need additional sachet forming device
Filling Wt 1～50g
Accuracy ±（0.1-0.2）g
Speed 50-70 bpm
Power 3kw / AC380V
Dimension L1600mmW1100mmH1960mm
Weight 450kg
Film Roll Out Dia ≤450mm
Film Roll Inner Dia 75mm
Film Material PET/AL/PE,PET/PE,OPP/CPP etc
