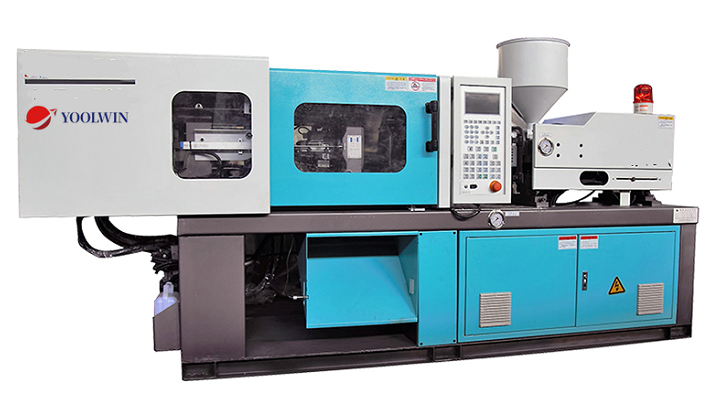

HYF-500 injection molding machine

HYF-500 injection molding machine



The machine adopts double bent elbow inward turning type, the action principle of this type is: when opening and closing the mold, the mold closing cylinder 1 is fed with oil and the piston rod pushes the double bent elbow linkage mechanism 5 to drive the mold 6 and its mold to realize the opening and closing mold movement;.

The elbow linkage 5 is in the unstraightened state, and the amplification of the force generated by the Japanese injection molding machine brand elbow linkage mechanism 5 under the action of the thrust of cylinder 1 deforms the mold closing system until the elbow linkage 5 is straightened until it enters the self-locking state. The mold adjusting device cooperates with the mold closing cylinder to adjust the locking force according to the process requirements so that the connecting rod does not straighten.

The characteristic of the direct pressure mold closing structure is that its switching mold action and locking mold action automatic injection molding machine price are done through the direct action of the cylinder. The speed of movement and the modulus of elasticity are determined by the speed of movement of the piston rod and the maximum axial force generated by the piston, respectively.

Its working principle is: when changing the mold, the moving cylinder 5 feeds oil and pushes the piston rod, thus driving the tie rod and moving mold movement to realize the switching mold movement; after entering the locking state, the locking cylinder 4 feeds oil and the cylinder 4 feeds oil and pushes the piston rod, thus realizing the locking mold.


普通型注塑机 HYF-500



HYF—500单色机主要技术参数

名称

单位

数值

A

B

螺杆直径                     ScrewDiameter

mm

28

30

螺杆长径比                   ScrewL/DRatio

L/D

20

18.6

理论注射容积                    ShotVolume

cm³

60

82

实际注射质量                ShotWeight(ps)

g

50

73

注射速率                     InjectionRate

g/s

45

55

塑化能力          PlasticizingCapacity(PS)

g/s

5.4

5.7

注射压力                 InjectionPressure

Mpa

163

133

螺杆转速                        ScrewSpeed

rpm

0-200

合模力                       ClampingForce

KN

500

开模行程                      PlatenStroke

mm

255

拉杆内间距            SpaceBetweenTie-bars

mm

280×260

最大 模厚              Max.MouldThickness

mm

320

最小模厚                Min.MouldThickness

mm

120

顶出行程              EjectorStokeDistance

mm

65

液压顶出力                  EjectorTonnage

KN

22

油泵最大压力              Max.PumpPressure

Mpa

14

油泵马达功率                    MotorPower

KW

5.5

电热功率                       HeaterPower

KW

4.2

机器外形尺寸       MachineDimesions(LXWXH)

m

3.00×1.08×1.50

重量(约)          MachineWeight(about)

T

1.5
