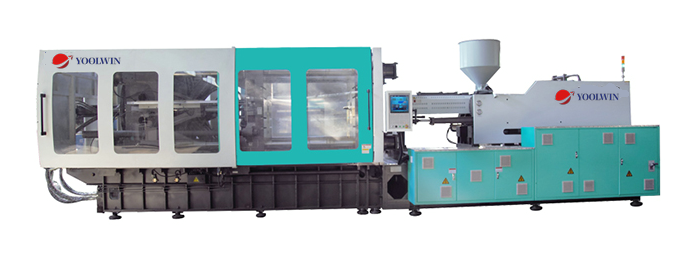

HYW-680 injection molding machine

名称

单位

数值

A

B

C

螺杆直径                     ScrewDiameter

mm

30

32

34

螺杆长径比                   ScrewL/DRatio

L/D

21

19.7

18.5

理论注射容积                    ShotVolume

cm³

91

104

118

实际注射质量                ShotWeight(ps)

g

85

96

109

注射速率                     InjectionRate

g/s

69.9

79.7

89.9

塑化能力          PlasticizingCapacity(PS)

g/s

9.5

12.1

14.21

注射压力                 InjectionPressure

Mpa

133

175

155

螺杆转速                        ScrewSpeed

rpm

0-200

合模力                       ClampingForce

KN

680

开模行程                      PlatenStroke

mm

280

拉杆内间距            SpaceBetweenTie-bars

mm

310×310

最大 模厚               Max.MouldThickness

mm

360

最小模厚                Min.MouldThickness

mm

120

顶出行程              EjectorStokeDistance

mm

80

液压顶出力                  EjectorTonnage

KN

28

油泵最大压力              Max.PumpPressure

Mpa

16

油泵马达功率                    MotorPower

KW

7.5

电热功率                       HeaterPower

KW

4.6

机器外形尺寸       MachineDimesions(LXWXH)

m

3.20×1.00×1.50

重量（约）          MachineWeight（about）

T

2.4
