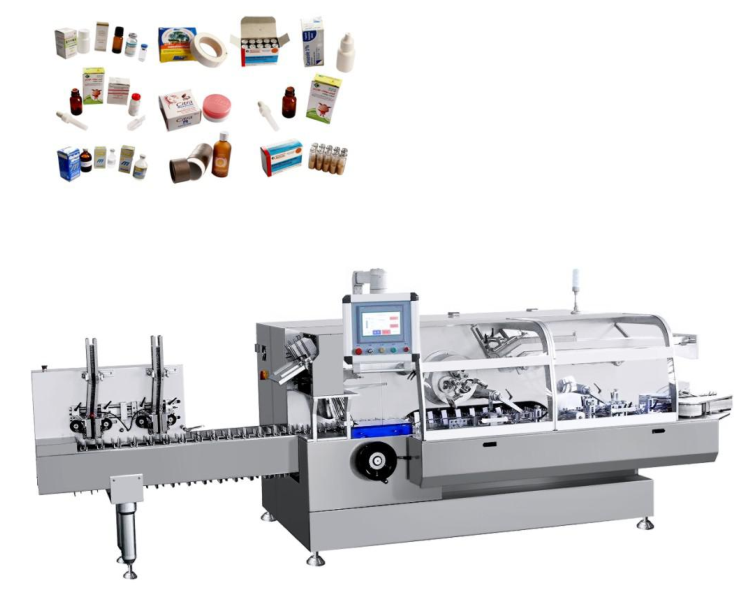

YL-200 Automatic cartoning machine

Application
This machine is suitable for packing blisters, tubes, ampoules and other related objects into boxes. It can be run continuously and the highest speed can up to 260boxs/min. It has advantages of high packing efficiency and good quality, and is high-tech product with structure of mechanical-electrical integration. This machine can fold leaflet, open box, insert blister into box, emboss batch number and then close or seal automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control, and photoelectric to supervise and control each station. So that once something unexpected happens speed its running, it will stop and display the reasons automatically, which can solve the troubles in time. This machine can be used separately, and also can be linked to other machine to be a production line. Note: this machine can also equip hot melt glue device to do hot melt glue sealing for boxes.

Main technical parameter
model YL-260
Production capacity (box/min) 80-260
Max size of box (mm)(l*w*h) 200*80*70
Min size of box (mm)(l*w*h) 65*25*15
Specification of box 250-300g/m2
Max size of leaflet (l*w) 260*180mm
Min size of leaflet (l*w) 110*100mm
Specification of leaflet 55-65g/m2
Volume of air consumption 20m2/h
Total power (Kw) 6.9
Power supply 380v 50hz
Overall dimension (l*w*h) 4500*1460*1800
Weight (kg) 3000
