Qingdao Yoolwin Packing Machinery Co.,Ltd

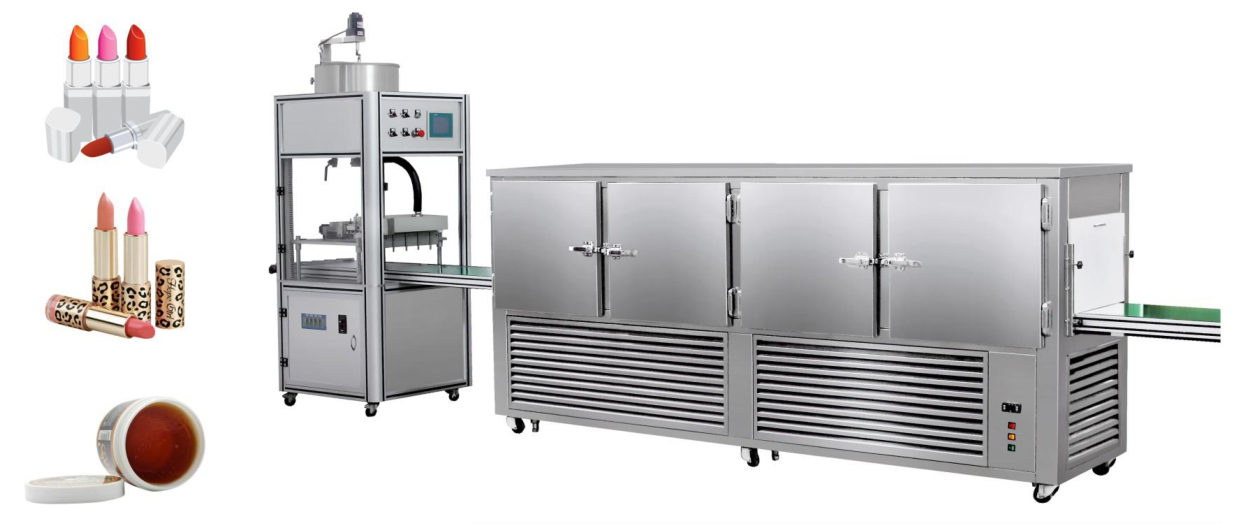

YLC Series 12-Nozzle Lipstick Filling Machine

This product is designed for lipstick/liquid cosmetics. It is suitable for lipstick, pen type lipstick, eyeliner pencil, etc.
Stirring speed and temperature of each tank are controlled independently.
Adopted advanced automatic control technology (interface, PLC, network), parameter (time, temperature, switch and speed of conveyor) is set by human machine interface. Easy control and stable performance.
◆Framework made of hardened aluminum is easy to maintain.
◆It doesn’t need much time to train operator.
◆Individual temperature control by PLC for separate unit (tank, filling pump, filling house, filling nozzle and heating plate) to achieve precise temperature.
◆Automatic timer and counter.
◆Can perform with conveyor.

Techni cal Parameter
Power: AC 220V/1Ψ/50Hz
Power Consumption: 4.5kw
Working Air Pressure: 6Kg/cm²
Dimension: 850×750×1905mm
Filling Volume: 1-14ml/piece
Tank Capacity: 20L,double-layer tank heated by oil Output: 8s/piece Filling Precision: ±1% Height of Working table: 620mm
