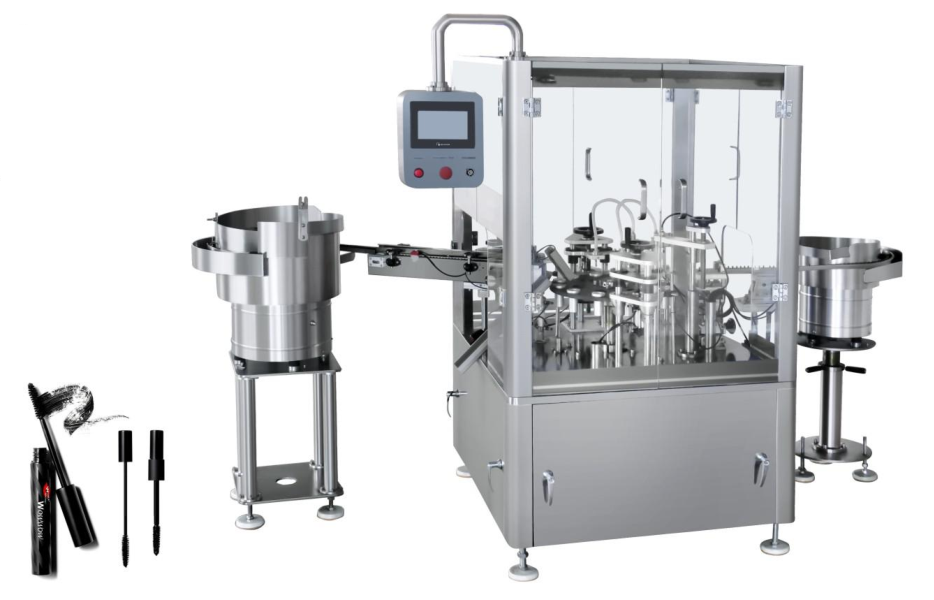

YLJM-40 Mascara Filling & Plugging And Capping Machine

Mascara Filling &Plugging and Capping Machine with functions of automatic filling, loading brush and capping. The whole machine adopts PLC control, with the function of no bottle no filling, no brush no cover, easy operation and adjustment conveniently.
This machine apply to dope material cosmetics product which needn’t be heat up, such as nail polish, mascara.
Used for Mascara, Lip gloss etc.
With automatically functions: Feeding containers and plugs, Filing and Capping. Including the unqualified rejection and good products into next steps etc..
Capping without plug, or plugging without cap, which will be rejected. If no plug, no cap, machine will give an alarm, stop working.
Feeding capping by XZ axis manipulator to take and place into mouth of containers by pneumatic with high precision.

Main technical parameter:
Main motor power: 0.75KW
Production Capacity : 40pcs/min
Filling volume: 5-20ml
Air supply pressure: 0.6-0.8Mpa
Dimension: 175*1650*1820mm
