Characters

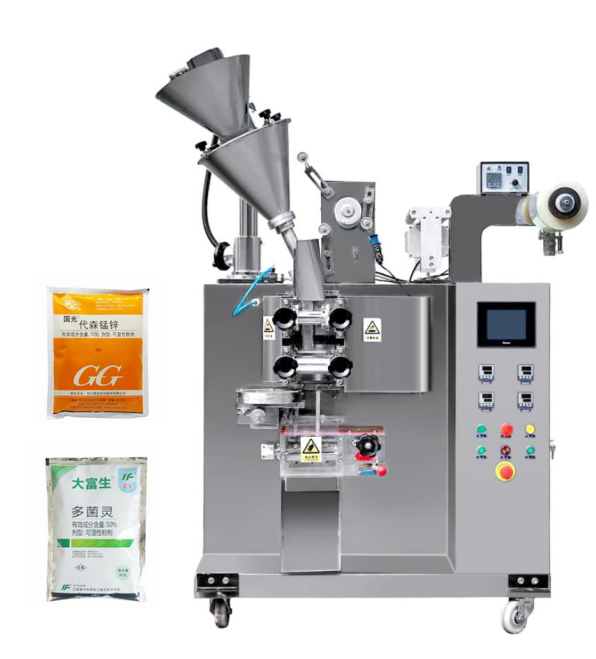

The machine is equipped with one set vertical hot rolling device, one set horizontal hot rolling device and one set horizontal cold rolling device.
Adopted the continuous rollers to seal the sachet. Adopted complete, continuous sealing pattern(chessboard pattern)
Using the latest servo auger filling system to fill powder products or swing filling system(measuring cup) for granule products with high filling accuracy.
Machine offered three types cutting knives(flat knife, serrated(zigzag) knife, dotted line knife) for customer selection. And also equipped with the punching easy tearing mouth device)
Machine adopted PLC control and touch screen indicating working status
Servo vertical hot sealing device ensure stepless controlled host machine speed adjustment
Servo horizontal hot sealing device achieve sachet length stepless adjustment
Servo horizontal cold sealing device ensure nice sealing appearance and coding effect.
Intelligent photoelectric eye marking system with the function of automatic orientation function, it can automatically eliminate the influence due to the defective printing of the eye mark or other factors.
Machine with the film tension revise function which can eliminate the influence from the packing material tension changing during production
Temperature intelligent control by the thermometer mode, more reliable and stable.
Blades error recovery device can achieve adjusting the blades angle online.
Automatic material level sensor monitoring the material level in the material hopper
Optional Function
Coding device
Material charging machine
Product Discharging Conveyor
Additional sachet forming device
Specification
Item | Detail | Remark |
Sachet Length | 45~180mm | |
Sachet width | 30-120mm | Changing width need additional sachet forming device |
Filling Wt | 2~50g | Dry and regular density granule(powder) |
Speed | 40~120 bpm | |
Power | 3kw / AC380V | |
Dimension | L1600mmW1100mmH1700mm | |
Weight | 400kg | |
Film Roll Out Dia | ≤550mm | |
Film Roll Inner Dia | 75mm | |
Film Material | PET/AL/PE,PET/PE,OPP/CPP etc |
